LOUIS: folding and stacking chairs
Drake Corp. 110 Tices Lane, Unit A7, East Brunswick, NJ 08816 USA, tel 732 254 1530, fax 732 254 3509

LOUIS: folding and stacking chairs

COLLECTION NAME


LOUIS resin folding and stacking chair

While Chateau chairs are drawn with classical lines, Louis folding and stacking chairs by Drake, shines with simple contemporary design. With their high decorative back towering the tables and their modern rich lines, will stand out and look fabulous whatever the setting. Whether used with additional decorations or simply bare, the Louis will bring high class event sophistication with the ease of handling of a folding chair.
The technology for the “Louis” is the same as our traditional “Structure” folding chair, Co-injection technology with an aesthetic outer skin as well as a solid foam core.
Features:
• Super lightweight.
• Strong and secure.
• Patented stacking and interlocking system.
• Ultra bright white color. (Other colors include black, redwood, silver and gold.)
These chairs will better dominate the table set up due to the 41.5” long design.
Louis chairs are folding, stacking (horizontally and vertically), and come equipped with an interlocking feature that makes moving and storing them quite simple. They are strong, durable, weatherproof, UV protected, don't need painting and require very little maintenance.

MADE IN THE USA

BUY A SAMPLE ON-LINE  or click on ask quote.

FILES available for download:
Name Description Format Size
Louis High Back Folding Chairs Brochure pdf 440KB
High Back Folding Chairs Chateau and Louis Brochure pdf 545KB
Chair Linking Brochure pdf 400KB
Chair Trucks & Covers Brochure pdf 530KB
Chair Pallets & Dollies Brochure pdf 415KB
Chair Cart For HBChairs Brochure pdf 291KB


SOLID...As a ROCK

Like all Drake folding chairs, the LOAD rests on the two bars supporting the seat, NOT on the screws as on similar chairs.

Static vertical weight testing FEDERAL SPECIFICATION AA-C-291F



MATERIAL

The material used at Drake is a composite multi-layer techno-polymer which allows the manufacturing of the strongest (tested at 500lb.) and lightest (10lbs, only) special event resin chairs on the market.
LOUIS chairs are manufactured with a TWO COMPONENT RESIN (CO-INJECTION) system - the highest standard in plastic manufacturing. The result is an outer, smooth all weather resistant aesthetic skin, and an inner expanded closed cell modified resin with high mechanical resistance that behaves like a bone and gives exceptional strength to the chair.

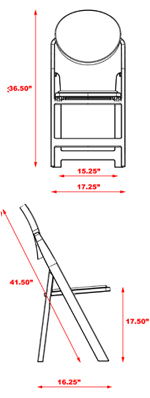

DIMENSIONS

Our chairs are folding, stacking (horizontally and vertically), and come equipped with an interlocking feature that makes moving and storing them quite simple.

Flat Chair dimensions:
17 3/8" x 41.5" x 2 1/3"
Net weight: 10.5 pounds including padded seat.

STACK OF 25 CHAIRS: h=58.5”
STACK OF 30 CHAIRS: h=70”
STACK OF 50 CHAIRS: h=117”



FOLDING CHAIR CLEANING

We suggest water and mild soap to clean up dust and common everyday dirt.
When “hard to clean” marks are found on the WHITE chairs (only on white chairs!), SOFT SCRUB or an equivalent product will work just fine.
Steam cleaning could be performed from time to time and only when really needed. The operating 212°F-230°F temperature range is considered safe.
And....yes, Drake resin folding chairs can be washed in automatic chair washing machines.

ATTENTION before using any kind of cleaner, make sure that it is is not going to affect the materials of the chair, particularly the vinyl of the seat pad . Try the cleaner on a small area and make sure no visible damages appear for at least 5-7 days before using the cleaner consistently.
In any case the vinyl (PVC) of the seat should not be treated with acids, solvents, sodium hydroxide (caustic soda NaOH), sodium hypochlorite NaClO (liquid bleach).



MAINTENANCE, REPAIR & WARNINGS

Buying our products means never having to paint a chair again. Because the colors of our products run all the way through them they will never need painting. The only ordinary maintenance required is cleaning.

Inspect and check the integrity of each chair every time before deploying it, making sure all bolts and parts are firmly tightened.

If any parts are missing, damaged, or worn, stop using the chair.

This chair is designed for seating one person at a time and for sitting only.
Do not stand on the chair.
Do not use it as a step ladder.

In the event of damages from extremely rough handling or improper use, do not attempt to glue broken parts back together.

**Call us at 732 254 1530 for spare parts**

We'll be there to assist you in the best way we can.



SHIPPING

Louis chairs come in a box of 5 ea.
17 3" x 41.5" x 12.5" at 55 lbs.
Shipping CLASS 85

Samples come in a box of 1ea.:
18"x42"x3" at 11 pounds





Chair link and spacer: you need space!!!

Sometimes linking chairs together is mandatory. Whenever you link chairs without spacing, you oblige guests to
squeeze in a 17”/18” chair. They need space!!!
With our link & spacer device, you can give 3” more comfort to your
customers and guests so that the feeling is to sit on a wider space.

FEATURES
• Snap on, NO TOOLS required
• Leaves 3” between linked chairs
• Stacks for storage
• Engraved 3 3/4” x 1 1/2” Drake Logo could be replaced by your logo for a one time set up fee
• Placeholder can be used with business card, advertising card, reserved seating card, row and seat number card, event card. Customize the event/seating using Avery® Clean Edge Business cards 2”x3 1/2”




Pallets & stack covers for high back chairs

DE CHAIR PALLET FOR HIGH BACK FOLDING CHAIRS (extra long)
material: thermoformed HDPE 0.220” thick
sheet capacity: 330 lb. distributed load
internal: 18” x 43.5”
external: 18.5” x 44”
straps: 2”
pallet feet: none
casters: none
to be used with CHAIR TRUCKS

ECONOMY STACK COVER FOR HIGH BACK FOLDING CHAIRS  (extra long)
Non-woven polyester material. Breathable fabric. 52” lateral slit with Velcro eases up positioning of the cover on the stack and a Velcro buckle for extra security. Bottom edge is hemmed for durability.
Dim. 18” x 42” x 58” high



Chair truck

Strong sturdy, a major help in handling chairs. Every task involving moving chairs will be easier.

Please secure the chairs to the chair base or pallets before operating it.

• 4 pneumatic wheels/10” closed cell foam tires, ball bearing hubs
• powder coated steel frame
• expanded metal backguard & 54” aluminum fenders to protect load from rubbing on tires
• 34” long forks, 7/8” diameter, 14 3/4” apart, designed for heavy duty hauling
• MAX LOAD: 750 lbs.
• weight: 97 lbs.

Shipped via truck only, some assembly required.



Chair Cart x High Back Folding Chairs

Perfect for transporting chair stacks within Hotels and Banquet Halls where moving through elevators and narrow corridors might be a challenge.
Our famous custom made HDPE thermoformed chair pallet was adapted to be used with a sturdy welded steel frame, equipped with an easy to pull handlebar.

Max Suggested load: 30 chairs
(300lbs distributed load)

2 rigid and 2 swivel 4” Caster
(Polyurethane on Polyolefin)

Some assembly required.



Extra chair pads

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.
Available in white or black.



Resin chair pads

A comfortable alternative to the padded seats. Good look, very low maintenance, Drake did it again, coming up with an alternative to PVC upholstered seats.

• no modification to the chair necessary, pop out the old seat and snap in one of these colored seats. Available in white, black, green, red... you name it.
• change the seat to match the event theme
• special contoured shape for superior comfort
• can be left out in any weather condition without becoming soggy like the vinyl covered foam pads





item# description
quote

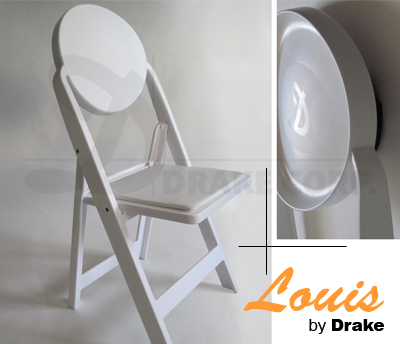

5HBLouW-W Louis White • folding and stacking chair

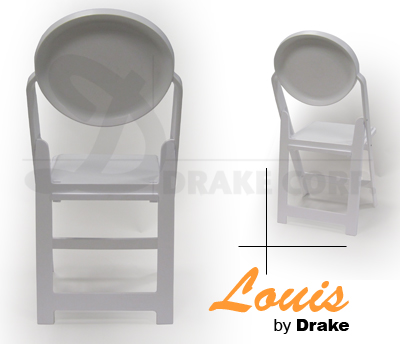

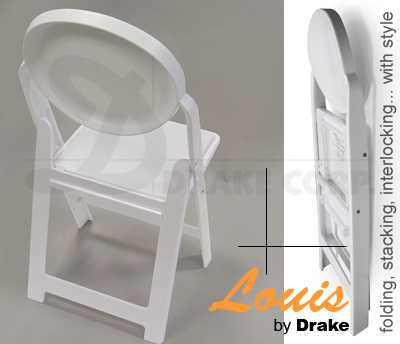

LOUIS: folding and stacking chairs / back detail

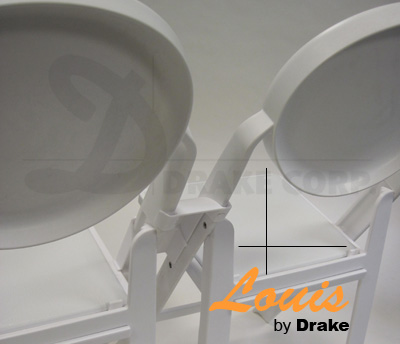

LOUIS: folding and stacking chairs / back details

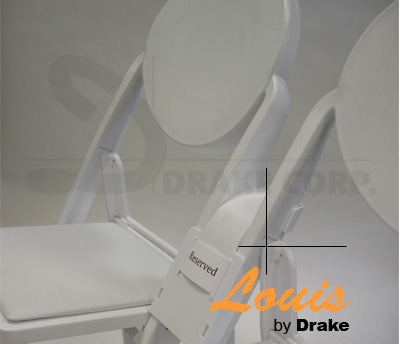

LOUIS chairs / chair link and spacer

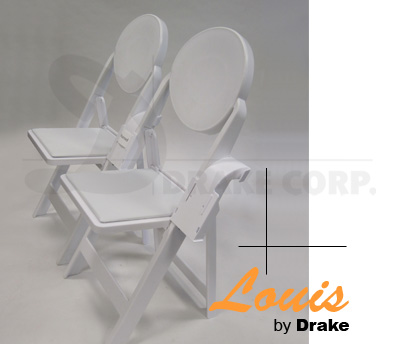

LOUIS chairs / chair link and spacer
LOUIS chairs / chair link and spacer
LOUIS: folding chairs are proudly made in the USA
