ISPRA resin folding & stacking chairs, by Centro Erre
Drake Corp. 110 Tices Lane, Unit A7, East Brunswick, NJ 08816 USA, tel 732 254 1530, fax 732 254 3509

ISPRA resin folding & stacking chairs, by Centro Erre

COLLECTION NAME


Italian Design
Comfortable
Strong and Durable
Easy to clean,
  never needs painting
Easily stackable vertically
  as well as horizontally

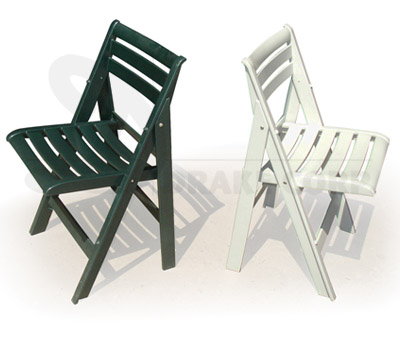

Ispra is a STRONG 11 pound bi-component structural resin folding chair, which folds perfectly flat to 2 3/4.
Guaranteed resistant to all weather conditions and UV rays, it is easily cleaned using water and a neutral liquid detergent.
Ideal for any outdoor dining area.
Easy to handle, low maintenance, stacking and interlocking.
Available in White only.

Please note, hunter Green is not available anymore.

FILES available for download:
Name Description Format Size
Ispra folding chairs Brochure pdf 880KB


MATERIAL

Material
Structural bi-component resin is formed with two materials:
A- a modified aesthetic compact resin
B- a modified resin with expanded
   closed cells, with extreme absorbing
   properties against movement.
The compact material of the outer surface highlights the aesthetic appeal as resisting U.V. rays, extreme heat, cold, water, humidity and every day use.
The expanded closed cell material on the inside has the ability to withstand stress, tension and unavoidable movements during use.
The structural bi-component resin remains undistorted, insuring maximum resistance from both materials.

Bi-component resin is a recyclable material.

Ispra meets and exceeds the standards set forth in ISO 7173, ANSI/BIFMA X5.1-1993 and ANSI/BIFMA X5.4-1997. The product specifically will meet or exceed the 225 lbs. functional load as well as the 300 lbs. proof load requirements of the test.



DIMENSIONS and WEIGHTS

Seat dim.: 15x16

Seat height: 17

Weight: 11 lbs.



INTERLOCKING BUTTONS

Each chair has 4 locking buttons for easy stacking.



SAMPLES

Samples are shipped 2 chairs per box.



SHIPPING

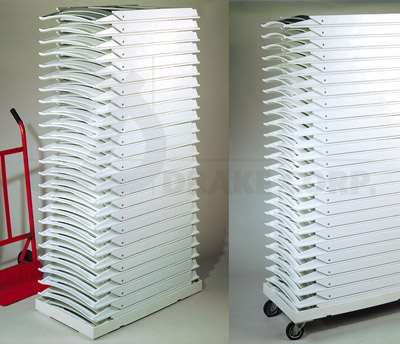

We ship 25 Ispra chairs on a resin base which can be easily handled with a handtruck or a palletjack.

Stack Dim.: 18 x 35 x 71h

Four legs can be attached to the base for convenient palletizing.

Four casters may be used to convert the resin base into an easy move around Ispra dolly (casters NOT included)




Ispra linking armrest

One or more chairs can be aligned and linked with our linking armrest. Snap in - snap out no tools required.



RG chair tray, pallet & dolly for FOLDING chairs

Chair tray, basic configuration:
material: PP structural foam
capacity: 330 lb. distributed load
internal: 18” x 35”
external: 18.5” x 35.5”
straps: 1.25”
to be used with HAND TRUCKS

Optionals

---------------------------
Chair pallet configuration:
tray + 4 pallet feet
long side clearance: 27.25” (pallet jacks)
short side clearance: 10.25”
to be used with PALLET JACKS

---------------------------
Chair cart configuration:
tray + 2 casters 2.5” swivel + 2 pallet feet + lift jack

---------------------------
Chair dolly configuration
tray + 4 casters 2.5” swivel



Ispra Pallet Jack Handle

Lift Jack, bended steel with foam grasping handle, pivotal pallet lift mounted on 2 twin 4” wheels.

To be used with the Ispra Pallet in a Chair cart configuration:
– tray
– 2 casters 2.5”
– 2 pallet feet






item# description
quote
RG2007r Ispra White Chair
RG2107 Ispra Linking Armrest
RG2007rbase RG chair tray, pallet & dolly for FOLDING chairs

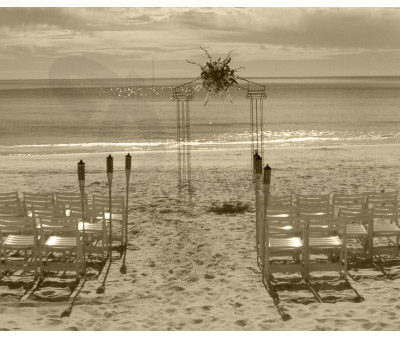

Ispra White / Wedding on the beach

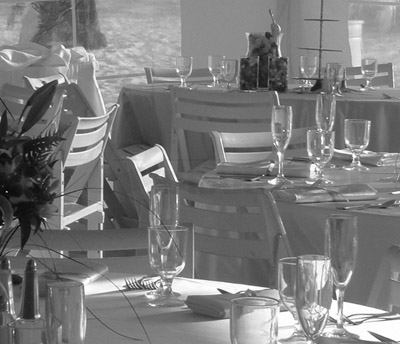

Ispra White / Elegant table details
Ispra chair stacks handling

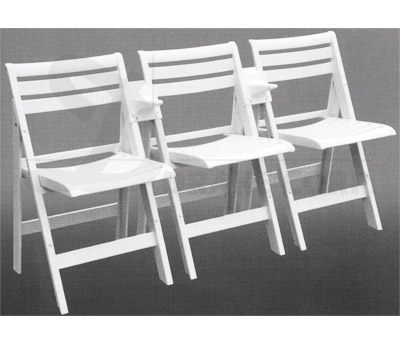

Ispra White / linking armrest
