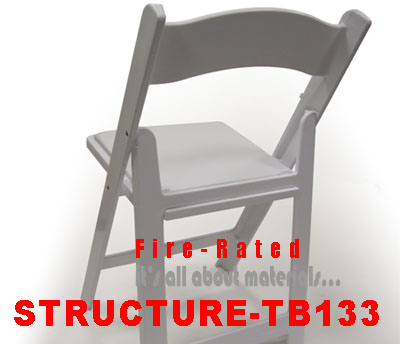

STRUCTURE TB133 Fire rated resin folding and stacking chairs

SOLID...As a ROCK

The LOAD rests on the two bars supporting the seat, NOT on the screws as on similar chairs.

Static vertical weight testing FEDERAL SPECIFICATION AA-C-291F

MATERIAL

The material used at Drake is a composite multi-layer techno-polymer which allows the manufacturing of the strongest (tested at 500lb.) and lightest (10lbs, only) special event resin chairs on the market.

STRUCTURE chairs are manufactured with a TWO COMPONENT RESIN (CO-INJECTION) system, the highest standards in plastic manufacturing.
The result is an outer, smooth all weather resistant aesthetic skin, and an inner expanded closed cell modified resin with high mechanical resistance that behaves like a bone and gives exceptional strength to the chair.

For STRUCTURE TB133 the materials of the chair itself have been upgraded to:
• Chair Frame Outer Material: PP Fire rated
• PAD/plastic seat board: PP Fire rated
• PAD/Seat Foam: PU Fire Resist. Class 1/M
• PAD/Vinyl Cover: 100% PVFP-PVC Fire Resist. Class M2

FLAMMABILITY TESTING

*** STRUCTURE TB133/FLAMMABILITY OF PUBLIC SEATING TESTING
An open calorimeter was used for this project. Under this test method, seating furniture is exposed to an open flame ignition source. Test results include rate of heat release determinations:
• Peak Heat Release Rate, (kW): 20 (OK)
• Total Heat Released @ 10 Min. (MJ): 1.3 (OK)
With a Peak Heat Release Rate Time of 1.5 min.

STANDARD CRITERIA FOR ACCEPTANCE:
Seating Furniture MEET the requirements of TB 133 if any of the following criteria are met:
1) A heat release rate of less than 80 kW during the test.
2) A total heat release in the first 10 minutes of the test must LESS THAN 25 MJ

Well... we did pretty well, didn’t we?

DIMENSIONS

Chair dimensions when folded:
17 3/8” x 35” x 2 1/3” [inches]
45 x 89 x 6 [cm]

net weight:
10 pounds including padded seat.

PATENTED STACKING SYSTEM WITH INTERLOCKING
STACK OF 25 CHAIRS: h=58.5”
STACK OF 30 CHAIRS: h=70”
STACK OF 50 CHAIRS: h=117”

SHIPPING

Our Structure chairs, come in a box of 5.

Box Weight: [52 lb.] [23.5kg]

Box Dim.:
18” x 36” x 13” [inches]
46 x 91.5 x 33 [cm]

CLASS 85

Extra folding chair pads (TB133)

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.

*** TB133 RATED Seat Pads:
• PP Fire rated
board
• Seat Foam: PU Fire Resist. Class 1/M

• Vinyl Cover: 100% PVPP-PVC Fire Resist. Class M2

Color: white only

view more

DR chair pallet for FOLDING chairs AND OR CHIAVARI CHAIRS

One chair pallet fits up to 30 regular folding chairs. Secure the chairs to the pallet with straps before moving, making sure the strap works with the interlocking system of the chair.

The same pallet fits also 2 stacks of 5 CHIAVARI chairs. As always, secure the chairs to the pallet with straps before moving.

material: thermoformed HDPE 0.220” thick sheet

capacity: 330 lb. distributed load
internal: 17.75” x 35.5”
external: 18.25” x 36”
straps: external

pallet feet: yes (built in)
long side clearance: 28” (pallet jacks)
short side clearance: chair trucks
casters: none

to be used with CHAIR TRUCKS or PALLET JACKS

view more

RG chair tray, pallet & dolly for FOLDING chairs

Chair tray, basic configuration:
material: PP structural foam
capacity: 330 lb. distributed load
internal: 18” x 35”
external: 18.5” x 35.5”
straps: 1.25”
to be used with HAND TRUCKS

Optionals

---------------------------
Chair pallet configuration:
tray + 4 pallet feet
long side clearance: 27.25” (pallet jacks)
short side clearance: 10.25”
to be used with PALLET JACKS

---------------------------
Chair cart configuration:
tray + 2 casters 2.5” swivel + 2 pallet feet + lift jack

---------------------------
Chair dolly configuration
tray + 4 casters 2.5” swivel

view more

Stack Cover for regular Folding Chair HQ

Nylon, with inner PVC coat.
Heavy duty water resistant chair stack cover, for transportation and storage.
Taylored for a 25 folding chair stack.
Lateral slit with Velcro eases up positioning of the cover on the stack.
Dim. 17 1/2” x 35” x 58” high

view more

Stack Cover for regular Folding Chair ECONOMY

Non-woven polyester material.
Breathable fabric.
52” lateral slit with Velcro eases up positioning of the cover on the stack and a Velcro buckle for extra security.

Bottom edge is hemmed for durability.

Dim. 18” x 35 1/2” x 58” high

view more

Chair truck, HEAVY DUTY, 4 wheels

Strong sturdy, a major help in handling chairs. Every task involving moving chairs will be easier.

Please secure the chairs to the chair base or pallets before operating it.

• 4 pneumatic wheels/10” closed cell foam tires, ball bearing hubs
• powder coated steel frame
• expanded metal backguard & 54” aluminum fenders to protect load from rubbing on tires
• 34” long forks, 7/8” diameter, 14 3/4” apart, designed for heavy duty hauling
• MAX LOAD: 750 lbs.
• weight: 97 lbs.

Shipped via truck only, some assembly required.

view more

Chair hand truck, 2 wheels single axle

Our single axle chair handtruck is a good and cheaper alternative to a chair truck. Designed to lift heavy loads with minimum effort and transportation over rough pavement, down curbs, across lawns and up/down ramps. Folding forks allow shipment via UPS.

Specifications:
• 2 pneumatic wheels/10”
• Height: 65” • Length: 37” (with forks open)
• Width: 28” with pneumatic wheels
• Weight: 40 lbs.

Shipped via UPS or via truck, some assembly required.

Box dimensions:
19 3/8” x 11 3/4” x 64 1/2”

weight: 50 lbs.
