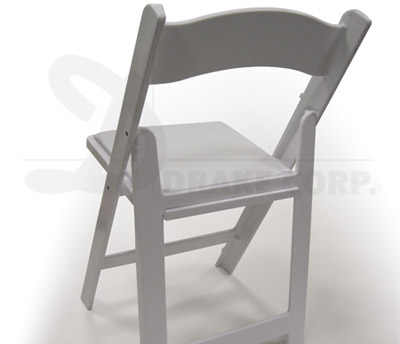

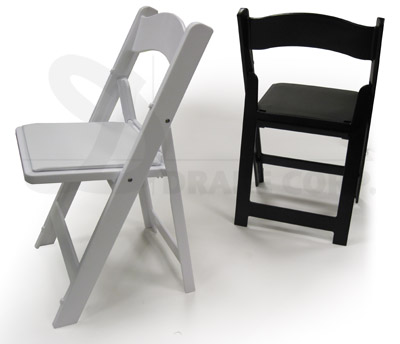

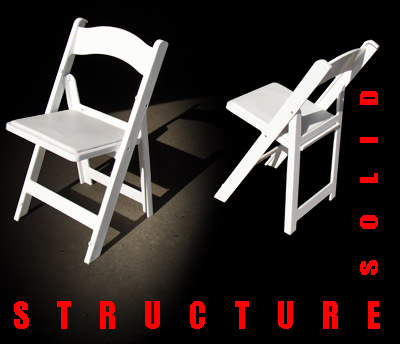

STRUCTURE resin folding and stacking chairs

SOLID...As a ROCK

The LOAD rests on the two bars supporting the seat, NOT on the screws as on similar chairs.

Static vertical weight testing FEDERAL SPECIFICATION AA-C-291F

MATERIAL

The material used at Drake is a composite multi-layer techno-polymer which allows the manufacturing of the strongest (tested at 500lb.) and lightest (10lbs, only) special event resin chairs on the market.

STRUCTURE chairs are manufactured with a TWO COMPONENT RESIN (CO-INJECTION) system, the highest standards in plastic manufacturing.
The result is an outer, smooth all weather resistant aesthetic skin, and an inner expanded closed cell modified resin with high mechanical resistance that behaves like a bone and gives exceptional strength to the chair.

DIMENSIONS

Chair dimensions when folded:
17 3/8” x 35” x 2 1/3” [inches]
45 x 89 x 6 [cm]

net weight:
10 pounds including padded seat.

PATENTED STACKING SYSTEM WITH INTERLOCKING
STACK OF 25 CHAIRS: h=58.5”
STACK OF 30 CHAIRS: h=70”
STACK OF 50 CHAIRS: h=117”

COMFORTABLE

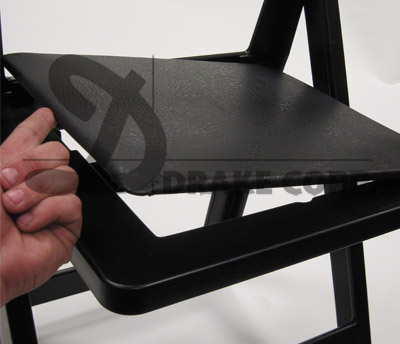

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.

SHIPPING

Our Structure chairs, come in a box of 5.

Box Weight: [52 lb.] [23.5kg]

Box Dim.:
18” x 36” x 12.5” [inches]
46 x 91.5 x 32 [cm]

*********
CONTINENTAL USA ONLY
STANDARD 100 CHAIR SHIPPING MODULE (no accessories) is one pallet:
Dim.: 55.5” x 39” x 82.5” [inches]
Weight: 1045 lb.
ESTIMATED CLASS 100

SAMPLES

Samples come in a box of 1ea.:
18"x42"x3" at 11 pounds

FOLDING CHAIR CLEANING

We suggest water and mild soap to clean up dust and common everyday dirt.

When “hard to clean” marks are found on the WHITE chairs (only on white chairs!), SOFT SCRUB or an equivalent product will work just fine.

Steam cleaning could be performed from time to time and only when really needed. The operating 212°F-230°F temperature range is considered safe.

And....yes, Drake resin folding chairs can be washed in automatic chair washing machines.

ATTENTION before using any kind of cleaner, make sure that it is is not going to affect the materials of the chair, particularly the vinyl of the seat pad . Try the cleaner on a small area and make sure no visible damages appear for at least 5-7 days before using the cleaner consistently.
In any case the vinyl (PVC) of the seat should not be treated with acids, solvents, sodium hydroxide (caustic soda NaOH), sodium hypochlorite NaClO (liquid bleach).

FOLDING CHAIR HANDLING

Our chairs have been designed to be easily folded, stacked and moved in stacks.

A chair pallet protecting the first chair of the stack is a must.
At Drake, we supply chair dollies that roll on casters and chair pallets that can be used with hand truck for deliveries, or with pallet-jacks for warehouse moving of multiple stacks at a time.

We also suggest strapping and covering the stacks, to protect chairs during transportation.

We supply 2 different chair stack covers, which are strong, protective, and easy to use for every chair move (both to and from the customer or simply warehousing). One is water resistant, the other is not.

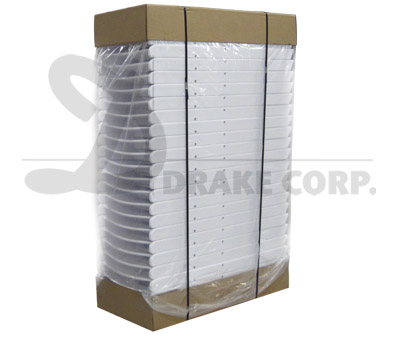

We do supply plastic bag rolls that cover the entire stack as well as boxes, as an economy packaging/warehousing system.


NOTICE: DO NOT USE COTTON COVERS WITH RESIN CHAIRS, as the static electricity produced by the two materials combined, attracts dust and dirt.

MAINTENANCE, REPAIR & WARNINGS

Buying our products means never having to paint a chair again. Because the colors of our products run all the way through them they will never need painting. The only ordinary maintenance required is cleaning.

Inspect and check the integrity of each chair every time before deploying it, making sure all bolts and parts are firmly tightened.

If any parts are missing, damaged, or worn, stop using the chair.

This chair is designed for seating one person at a time and for sitting only.
Do not stand on the chair.
Do not use it as a step ladder.

In the event of damages from extremely rough handling or improper use, do not attempt to glue broken parts back together.

**Call us for spare parts**

We'll be there to assist you in the best way we can.

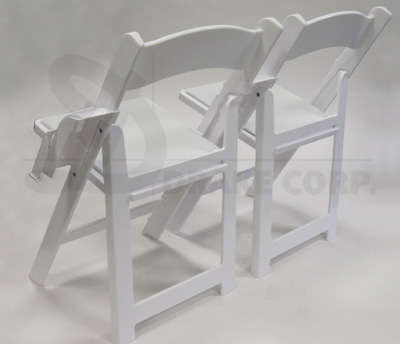

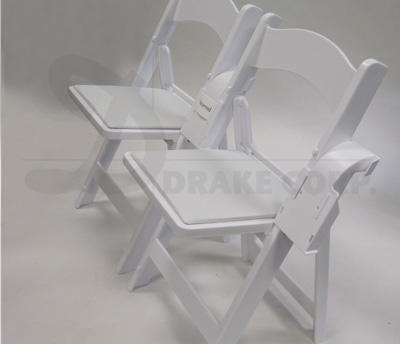

Chair link and spacer: you need space!!!

Sometimes linking chairs together is mandatory. Whenever you link chairs without spacing, you oblige guests to
squeeze in a 17”/18” chair. They need space!!!

With our link & spacer device, you can give 3” more comfort to your
customers and guests so that the feeling is to sit on a wider space.

FEATURES


• Snap on, NO TOOLS required

• Leaves 3” between linked chairs
• Stacks for storage

• Engraved 3 3/4” x 1 1/2” Drake Logo could be replaced by your logo for a one time set up fee

• Placeholder can be used with business card, advertising card, reserved seating card, row and seat number card, event card. Customize the event/seating using Avery® Clean Edge Business cards 2”x3 1/2”

view more

Extra folding chair pads

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.
Available in white or black (as a standard, custom colors available upon request, subject to min. order)

view more

Folding Chair Resin Seat Inserts

A comfortable alternative to the padded seats. Good look, very low maintenance, Drake did it again, coming up with an alternative to PVC upholstered seats.
• no modification to the chair necessary, pop out the old seat and snap in one of these colored seats
. Available in white, black, blue, green, red... you name it.

• change the seat to match the event theme

• special contoured shape for superior comfort

• can be left out in any weather condition without becoming soggy like the vinyl covered foam pads

view more

DR chair pallet for FOLDING chairs AND OR CHIAVARI CHAIRS

One chair pallet fits up to 30 regular folding chairs. Secure the chairs to the pallet with straps before moving, making sure the strap works with the interlocking system of the chair.

The same pallet fits also 2 stacks of 5 CHIAVARI chairs. As always, secure the chairs to the pallet with straps before moving.

material: thermoformed HDPE 0.220” thick sheet

capacity: 330 lb. distributed load
internal: 17.75” x 35.5”
external: 18.25” x 36”
straps: external

pallet feet: yes (built in)
long side clearance: 28” (pallet jacks)
short side clearance: chair trucks
casters: none

to be used with CHAIR TRUCKS or PALLET JACKS

view more

RG chair tray, pallet & dolly for FOLDING chairs

Chair tray, basic configuration:
material: PP structural foam
capacity: 330 lb. distributed load
internal: 18” x 35”
external: 18.5” x 35.5”
straps: 1.25”
to be used with HAND TRUCKS

Optionals

---------------------------
Chair pallet configuration:
tray + 4 pallet feet
long side clearance: 27.25” (pallet jacks)
short side clearance: 10.25”
to be used with PALLET JACKS

---------------------------
Chair cart configuration:
tray + 2 casters 2.5” swivel + 2 pallet feet + lift jack

---------------------------
Chair dolly configuration
tray + 4 casters 2.5” swivel

view more

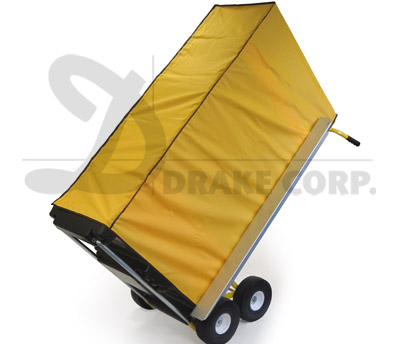

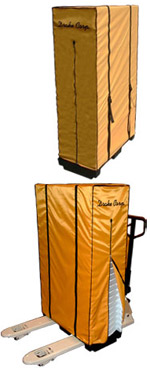

Stack Cover for regular Folding Chair HQ

Nylon, with inner PVC coat.
Heavy duty water resistant chair stack cover, for transportation and storage.
Taylored for a 25 folding chair stack.
Lateral slit with Velcro eases up positioning of the cover on the stack.
Dim. 17 1/2” x 35” x 58” high

view more

Stack Cover for regular Folding Chair ECONOMY

Non-woven polyester material.
Breathable fabric.
52” lateral slit with Velcro eases up positioning of the cover on the stack and a Velcro buckle for extra security.

Bottom edge is hemmed for durability.

Dim. 18” x 35 1/2” x 58” high

view more

Chair truck, HEAVY DUTY, 4 wheels

Strong sturdy, a major help in handling chairs. Every task involving moving chairs will be easier.

Please secure the chairs to the chair base or pallets before operating it.

• 4 pneumatic wheels/10” closed cell foam tires, ball bearing hubs
• powder coated steel frame
• expanded metal backguard & 54” aluminum fenders to protect load from rubbing on tires
• 34” long forks, 7/8” diameter, 14 3/4” apart, designed for heavy duty hauling
• MAX LOAD: 750 lbs.
• weight: 97 lbs.

Shipped via truck only, some assembly required.

view more

Chair hand truck, 2 wheels single axle

Our single axle chair handtruck is a good and cheaper alternative to a chair truck. Designed to lift heavy loads with minimum effort and transportation over rough pavement, down curbs, across lawns and up/down ramps. Folding forks allow shipment via UPS.

Specifications:
• 2 pneumatic wheels/10”
• Height: 65” • Length: 37” (with forks open)
• Width: 28” with pneumatic wheels
• Weight: 40 lbs.

Shipped via UPS or via truck, some assembly required.

Box dimensions:
19 3/8” x 11 3/4” x 64 1/2”

weight: 50 lbs.

view more
