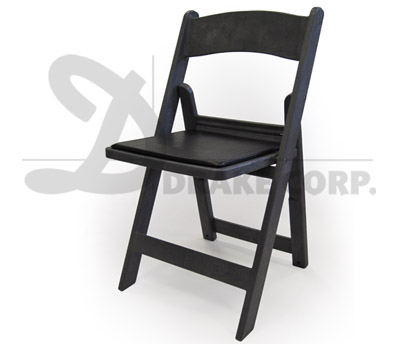

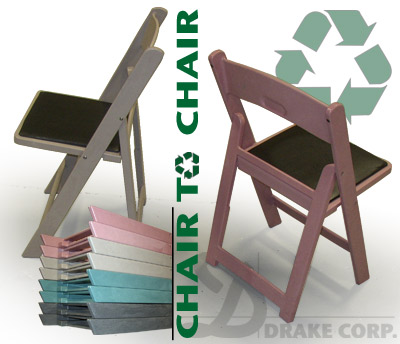

CHIP-R Resin folding and stacking chairs / CHAIR TO CHAIR program

FROM CHAIR TO CHAIR: CHIP R FOLDING CHAIRS AND THE NEW FRONTIER OF RECYCLING

NEW
New like in NEW CHAIRS by DRAKE, and going toward a GREEN direction. Our new line of folding chairs is made of plastic recycled materials for the environmentally friendly market. Colors available are light brown and gray.

WHAT
The biggest challenge, was to be able to UP-QUALIFY the plastic recycled compound, mixing it with secret ingredients in order to provide chairs that respect our tough requirements in terms of strength and quality.

WHY
Environmental sensitivity, without compromising the demanding performances requested from our regular chairs... the best on the market of course.

MORE
The new recycled chairs have the same longevity of our traditional chairs. The main difference with chairs made with virgin material is color: they are not made in white. Due to the fact that we cannot contrast colors from previous applications, the colors in recycled chairs are rich with shades resembling the natural variety that can be found in wood materials. They are kind of super-cool actually!!!

DO NOT BE FOOLED by the word ''recycled'', this chair formulation guarantees a MILITARY GRADE PRODUCT, as though as it can be!!!
Contact us to purchase a sample for evaluation...

click on ask quote below to inquire

Media
Tech Details
Accessories
Quote

Media available for download:

Folding-ology	01 Brochure / pdf/ 305KB
Chip Recycled	02 Brochure / Specific / pdf/ 163 KB
Chair Pallets & Dollies	01 Brochure / pdf/ 415KB
Chair Trucks & Covers	01 Brochure / pdf/ 530KB

SOLID...As a ROCK The LOAD rests on the two bars supporting the seat, NOT on the screws as on similar chairs. Static vertical weight testing FEDERAL SPECIFICATION AA-C-291F

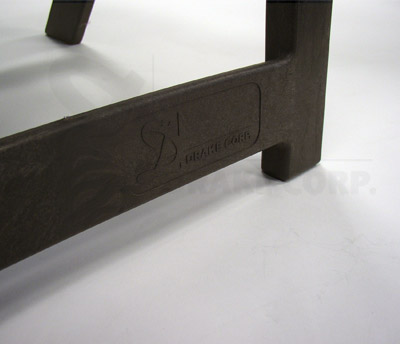

MATERIAL CHIP-R chairs are manufactured with our own dual density post industrial recycled RESIN plus GAS system. Resin is FIBERGLASS REINFORCED for maximum resistance. The result is another incredible, exceptionally strong, and good looking chair, by Drake.
DIMENSIONS Chair dimensions when folded: 17 3/8” x 35” x 2 1/3” [inches] 45 x 89 x 6 [cm] net weight: 11 pounds including padded seat. PATENTED STACKING SYSTEM WITH INTERLOCKING STACK OF 25 CHAIRS: h=58.5” STACK OF 30 CHAIRS: h=70” STACK OF 50 CHAIRS: h=117”

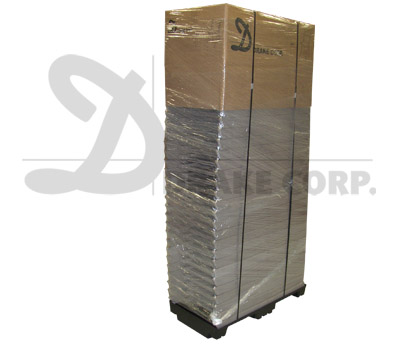

SHIPPING CONTINENTAL USA ONLY STANDARD 100 CHAIR SHIPPING MODULE (no accessories) is one pallet: Dim.: 55.5” x 39” x 80” [inches] Weight: 1125 lb. ESTIMATED CLASS 92.5
SAMPLES Samples come in a box of 1ea.: 18"x42"x3" at 11 pounds

Extra folding chair pads

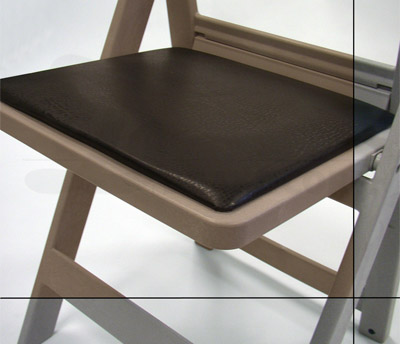

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.
Available in white or black (as a standard, custom colors available upon request, subject to min. order)

DR chair pallet for FOLDING chairs AND OR CHIAVARI CHAIRS

One chair pallet fits up to 30 regular folding chairs. Secure the chairs to the pallet with straps before moving, making sure the strap works with the interlocking system of the chair.

The same pallet fits also 2 stacks of 5 CHIAVARI chairs. As always, secure the chairs to the pallet with straps before moving.

material: thermoformed HDPE 0.220” thick sheet

capacity: 330 lb. distributed load
internal: 17.75” x 35.5”
external: 18.25” x 36”
straps: external

pallet feet: yes (built in)
long side clearance: 28” (pallet jacks)
short side clearance: chair trucks
casters: none

to be used with CHAIR TRUCKS or PALLET JACKS

RG chair tray, pallet & dolly for FOLDING chairs

Chair tray, basic configuration:
material: PP structural foam
capacity: 330 lb. distributed load
internal: 18” x 35”
external: 18.5” x 35.5”
straps: 1.25”
to be used with HAND TRUCKS

Optionals

---------------------------
Chair pallet configuration:
tray + 4 pallet feet
long side clearance: 27.25” (pallet jacks)
short side clearance: 10.25”
to be used with PALLET JACKS

---------------------------
Chair cart configuration:
tray + 2 casters 2.5” swivel + 2 pallet feet + lift jack

---------------------------
Chair dolly configuration
tray + 4 casters 2.5” swivel

Stack Cover for regular Folding Chair HQ

Nylon, with inner PVC coat.
Heavy duty water resistant chair stack cover, for transportation and storage.
Taylored for a 25 folding chair stack.
Lateral slit with Velcro eases up positioning of the cover on the stack.
Dim. 17 1/2” x 35” x 58” high

Stack Cover for regular Folding Chair ECONOMY

Non-woven polyester material.
Breathable fabric.
52” lateral slit with Velcro eases up positioning of the cover on the stack and a Velcro buckle for extra security.

Bottom edge is hemmed for durability.

Dim. 18” x 35 1/2” x 58” high

Chair truck, HEAVY DUTY, 4 wheels

Strong sturdy, a major help in handling chairs. Every task involving moving chairs will be easier.

Please secure the chairs to the chair base or pallets before operating it.

• 4 pneumatic wheels/10” closed cell foam tires, ball bearing hubs
• powder coated steel frame
• expanded metal backguard & 54” aluminum fenders to protect load from rubbing on tires
• 34” long forks, 7/8” diameter, 14 3/4” apart, designed for heavy duty hauling
• MAX LOAD: 750 lbs.
• weight: 97 lbs.

Shipped via truck only, some assembly required.

Chair hand truck, 2 wheels single axle

Our single axle chair handtruck is a good and cheaper alternative to a chair truck. Designed to lift heavy loads with minimum effort and transportation over rough pavement, down curbs, across lawns and up/down ramps. Folding forks allow shipment via UPS.

Specifications:
• 2 pneumatic wheels/10”
• Height: 65” • Length: 37” (with forks open)
• Width: 28” with pneumatic wheels
• Weight: 40 lbs.

Shipped via UPS or via truck, some assembly required.

Box dimensions:
19 3/8” x 11 3/4” x 64 1/2”

weight: 50 lbs.

Item#	Description	Quote
1CHP-R-Beige	Chip R - Beige/Black Seat	ask quote
1CHP-R-Gray	Chip R - Gray/Black Seat	ask quote

	accessories:
RSIPWIT	Padded seats - white	ask quote
RSIPBIT	Padded seats - black	ask quote
3BASEDR	Chair pallet/Chip, Structure & Chiavari	ask quote
RG2007RBASE	RG chair tray (can be pallet & dolly)	ask quote
RG2007RJack	Jack Handle x Ispra Pallets	ask quote
3ST25NYL-YV	Stack Cover (25 regular Folding Chairs-HQ)	ask quote
3ST25TNT-B	Stack Cover Economy (25 regular Folding Chairs)	ask quote
3TRCKDR	Chair truck (4 wheels/yellow)	ask quote
3HTRKDR	Chair truck (2 wheels/red)	ask quote
